| Function configuration | Technical parameters |

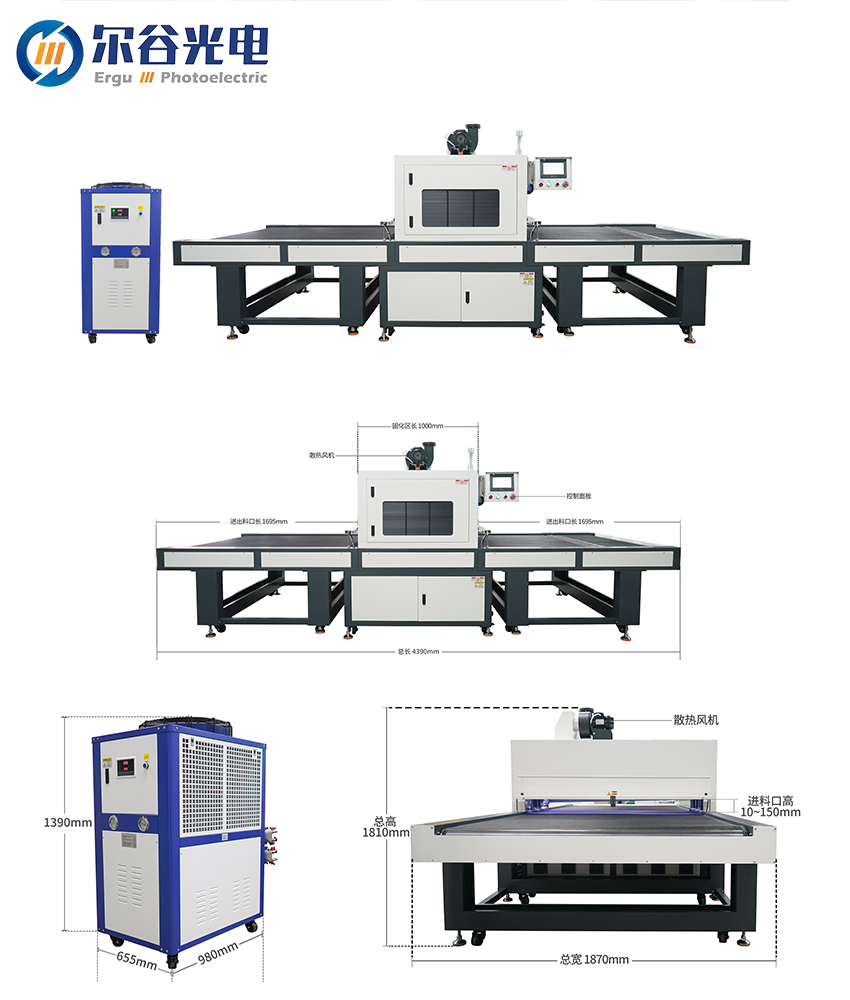

| Product Name | UV curing machine |
| Product model | LY1600-3S160035S36 |
| Overall size | L4390mmxW1870mmxH1810mm |
| Curing area long | 1000mm |
| Inlet height | 10-150mm manually adjustable |
| Chiller size | L980mm×W655mm×H1390mm |
| LED light source | Quantity: 3 groups; Luminous size: 1600mm × 35mm |
| Lamp wavelength | 365nm |
| UV lamp power | 22KW |
| Mesh belt material | Black PTFE mesh belt, UV resistant and high-temperature resistant |
| Operating voltage of the whole machine | AC380V 50Hz three-phase five wire system |
