| Function configuration | Technical parameters |
| Product Name | UV curing machine |
| Product model | LY400-3F36S4010-Explosion proof fan |

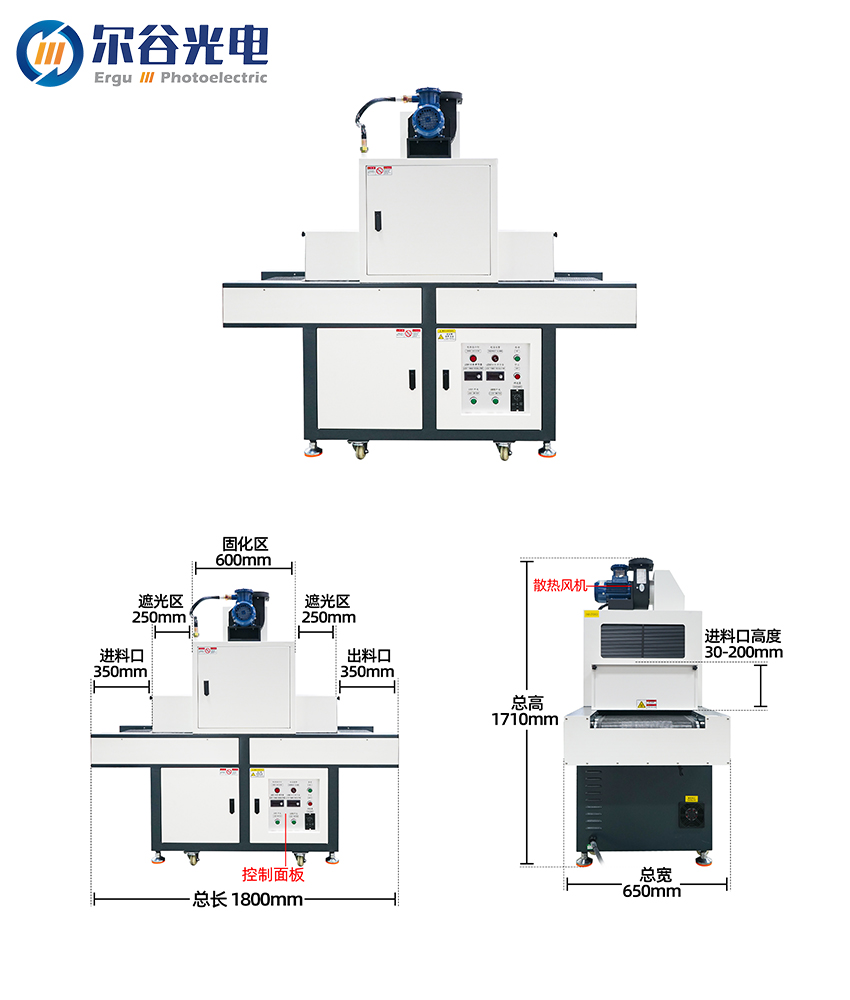

| Overall size | L1800mmxW650mmxH1710mm |
| Curing area long | 600mm |
| Inlet height | 30-200mm |
| Whole machine power | 4KW |
| LED luminous size | L400mm xW100mm |
| LED light source wavelength | 365nm |
| LED lifespan | ≧20000H |
| Mesh belt material | Black PTFE mesh belt, UV resistant and high-temperature resistant |
| Operating voltage of the whole machine | AC380V 50Hz |
