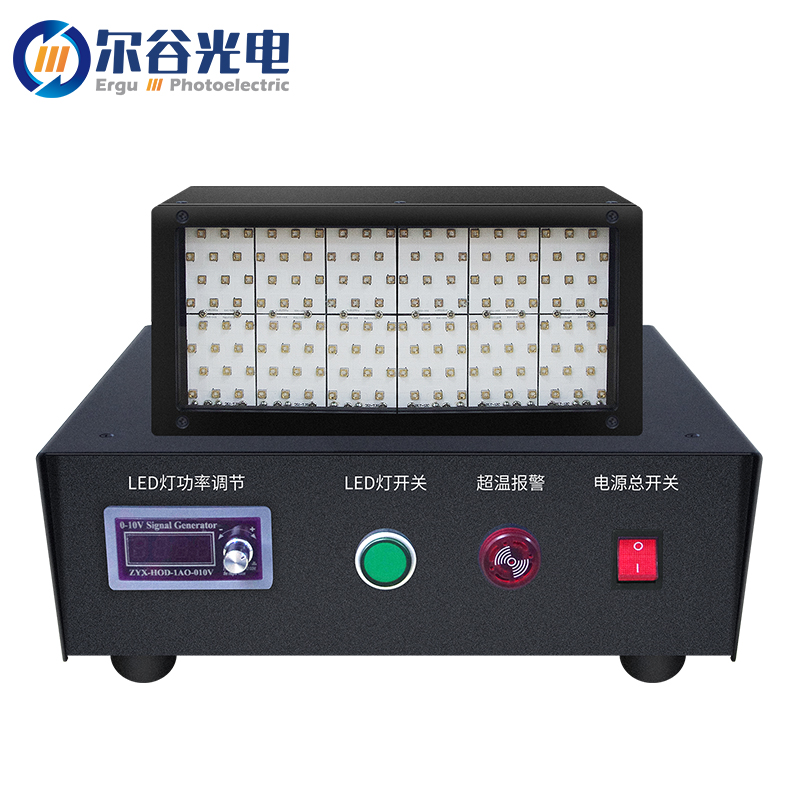

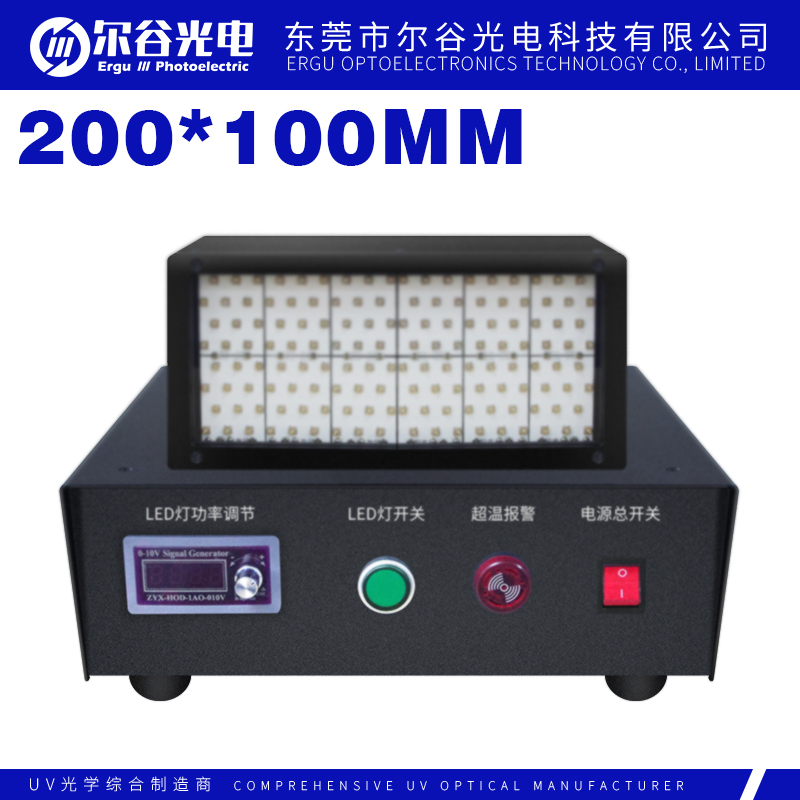

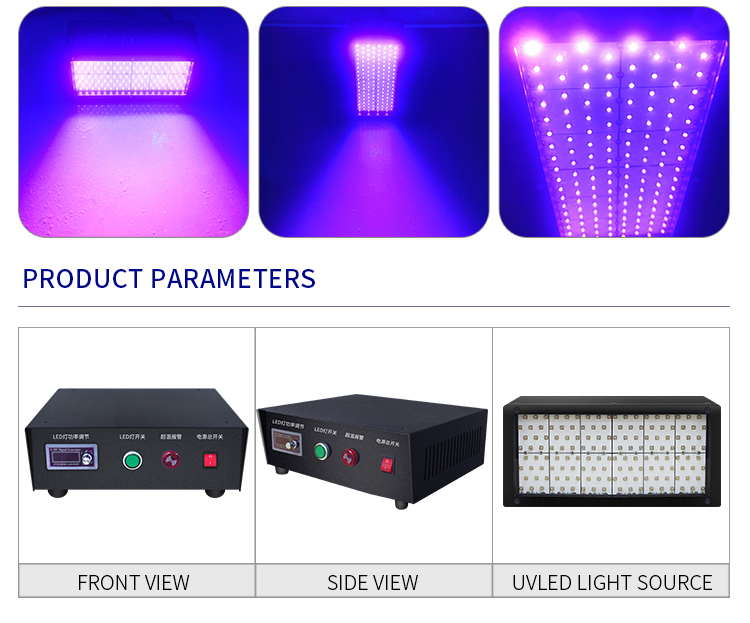

200 × 100mm UV LED curing lamp UV LED surface light source

4dhcpmingchen

【Origin Pic】

Function configuration	Technical parameters
Product Name	UVLED curing lamp
PRODUCT MODEL	F10-200100L36-001、F10-200100L38-001、F10-200100L39-001、F10-200100L40-001
Lamp head size	L244mmxW102mmxH125mm
CONTROLLER SIZE	L335mmxW296mmxH135mm
Lamp head weight	3.22KG
Weight of controller	7.16KG
radiated power	＞600mW/cm2(distance:1cm)
Radiant energy	＞1500mJ/cm2(speed:2m/min)
Irradiation Area	100x200mm
Cooling method	Air cooling
Surface color	Black
Material	Aluminum and quartz
INPUT VOLTAGE	AC 220V
Whole machine power	320W per unit
wavelength	365nm、385nm、395nm、405nm
lifetime	＞20000H
Operating ambient temperature	-20℃~40℃
Scope of equipment use	Suitable for all kinds of UV coatings, UV no shadow adhesive, UV ink, UV green oil, touch screen LOCA water adhesive, photosensitive adhesive exposure, flexible plate making, screen printing, UV epoxy resin, photosensitive resin, wire reinforcing, solder joint protection, UV three anti-paint, UV gloss oil (LED special type)
