| Function configuration | Technical parameters |

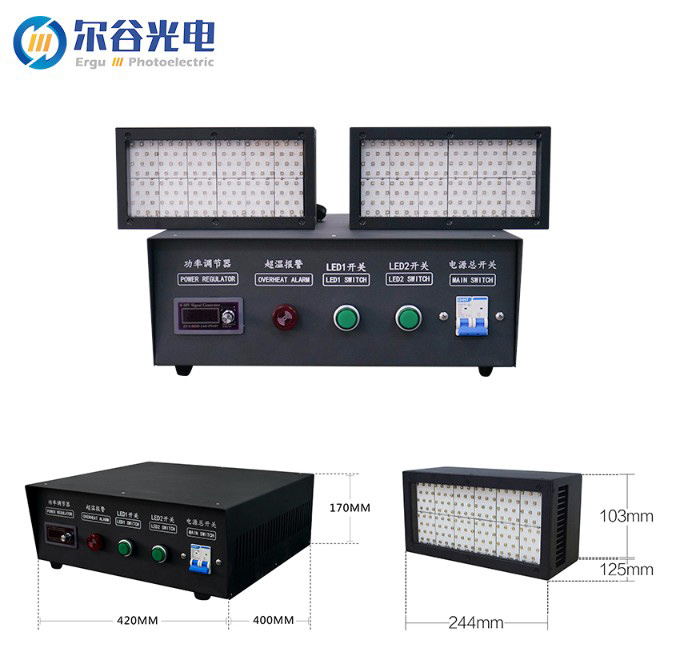

| Product name | UVLED curing machine |
| Product Model | F10-100200L36-002 |
| Lamp size | L244mm×W125mm×H103mm (without handle) |
| Controller size | L420mm×W400mm×H170mm |
| Number of lamp beads | 144×2=288 pieces |
| Lamp Bead type | Brand: SAN 'an; Model: 3535 |
| Irradiation area | 100×200mm |
| Cooling method | Air cooling |
| Surface color | Mainly black |
| Material | Aluminum and quartz |
| Input voltage | AC 220V |
| Power | 600W/ unit |
| Band | 365nm (other bands can be customized) |
| Life | 20000H |
| Working ambient temperature | -20℃~40℃ |
