 【Origin Pic】 |
|
|
|
| Function configuration | Technical parameters |
| Company Name | Ergou Optoelectronics |
| Product Name | UVLED curing lamp |
| Whole machine power | Customized |

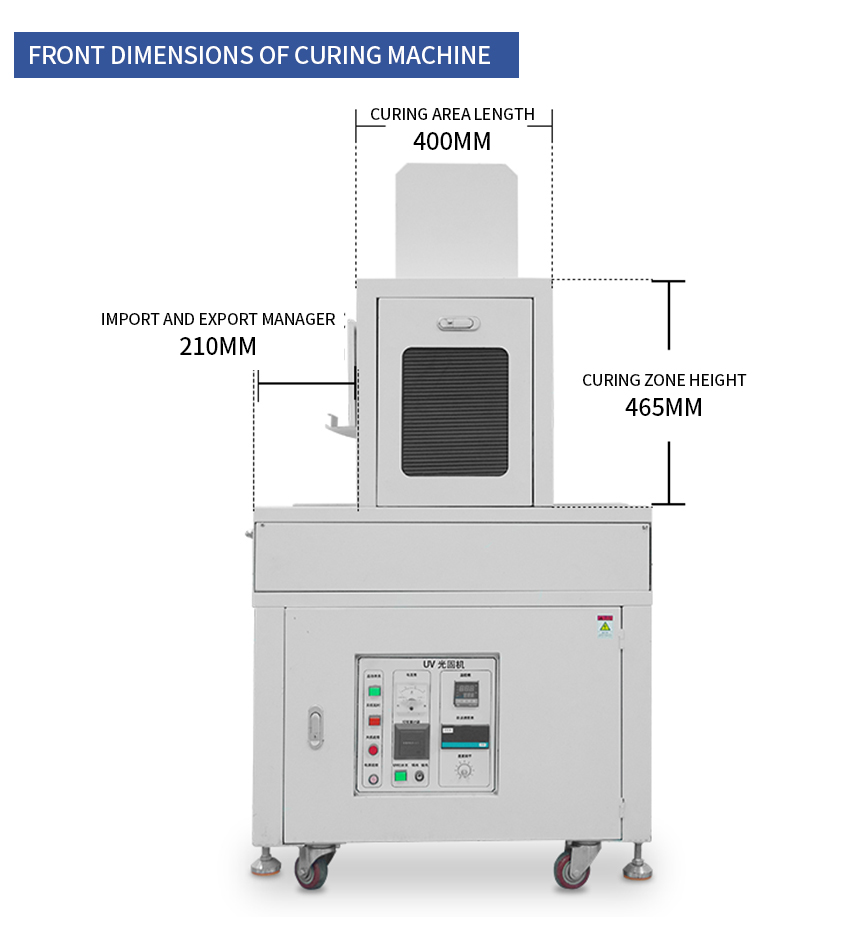

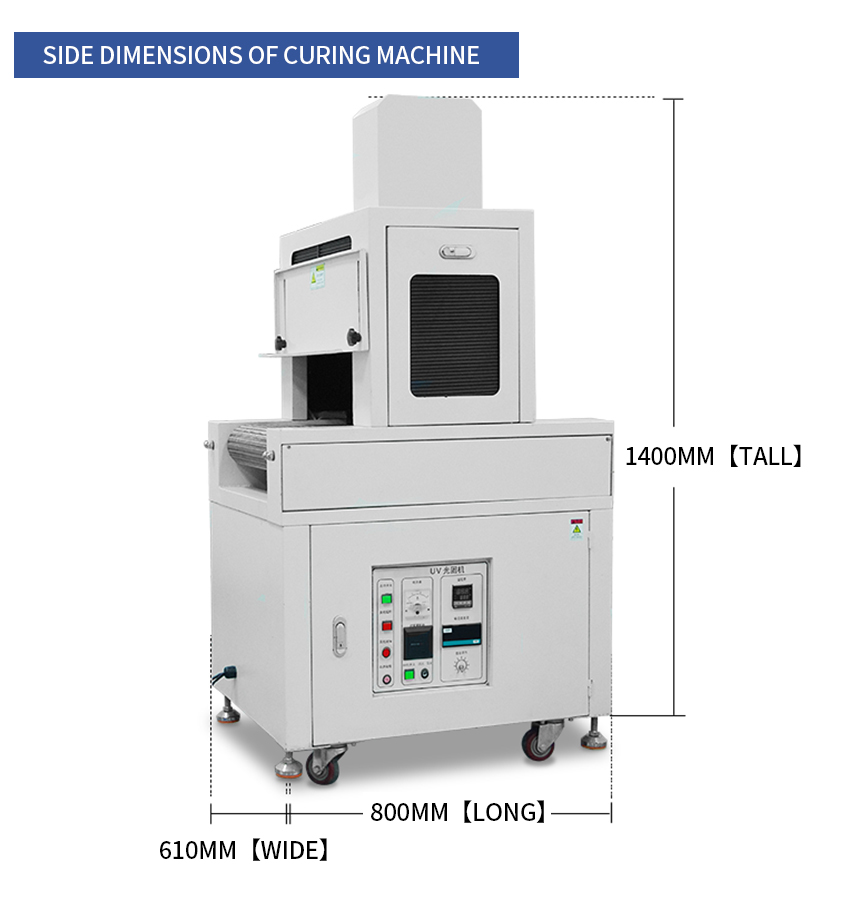

| External dimensions | 800*610*1400mm |
| Mesh belt width | 500mm |
| Lamp type | LED lights |
| Wavelength | 365nm/385nm/395nm/405nm (optional) |
| Feed height | 0-140mm (adjustable) |
| Mesh belt material | Stainless steel mesh belt |
| Conveyor speed | 0.5-8M/min (meters per minute) |
| Power regulation | Infinitely adjustable |
| Input power supply | AC 380V 50/60Hz |
| Equipment usage | Ink curing for screen printing, transfer printing, printing, etc; Curing of adhesives such as plastic, metal, and glass; Spray coating and oil curing |
