| Function configuration | Technical parameters |
| Product Name | UVLED curing lamp |
| Product model | RX200-1F36-JC |

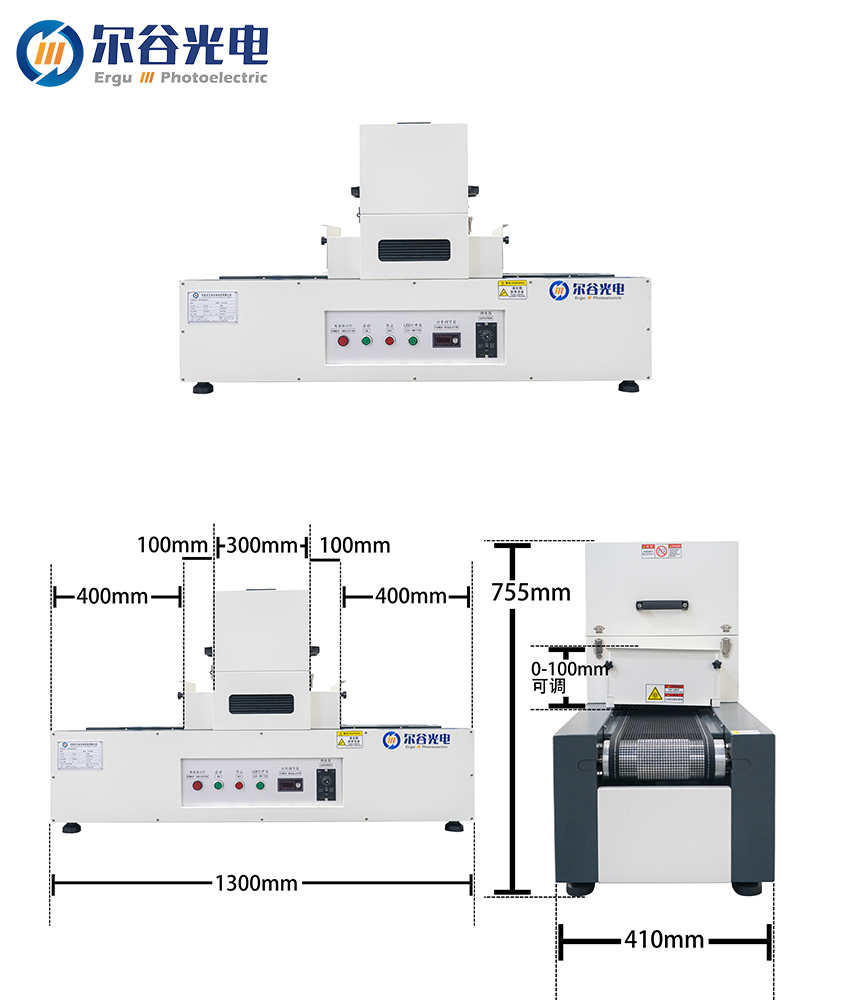

| Overall size | L1300mm×W410mm×H755mm |
| Curing area long | 300mm |
| Inlet height | 0-100mm adjustable |
| Curing method | Top set of LED surface light source, shining downwards |
| Illumination area | L200mm×W100mm |
| Lamp wavelength | 365nm |
| UV lamp power | 400W |
| Mesh belt material | Black PTFE mesh belt, UV resistant and high-temperature resistant |
| Operating voltage of the whole machine | 200V50-60Hz |
