LED curing machine-LY400-4S36B2
| Product Name |
UVLED curing machine |
| Product model |
LY400-4F36B2 |

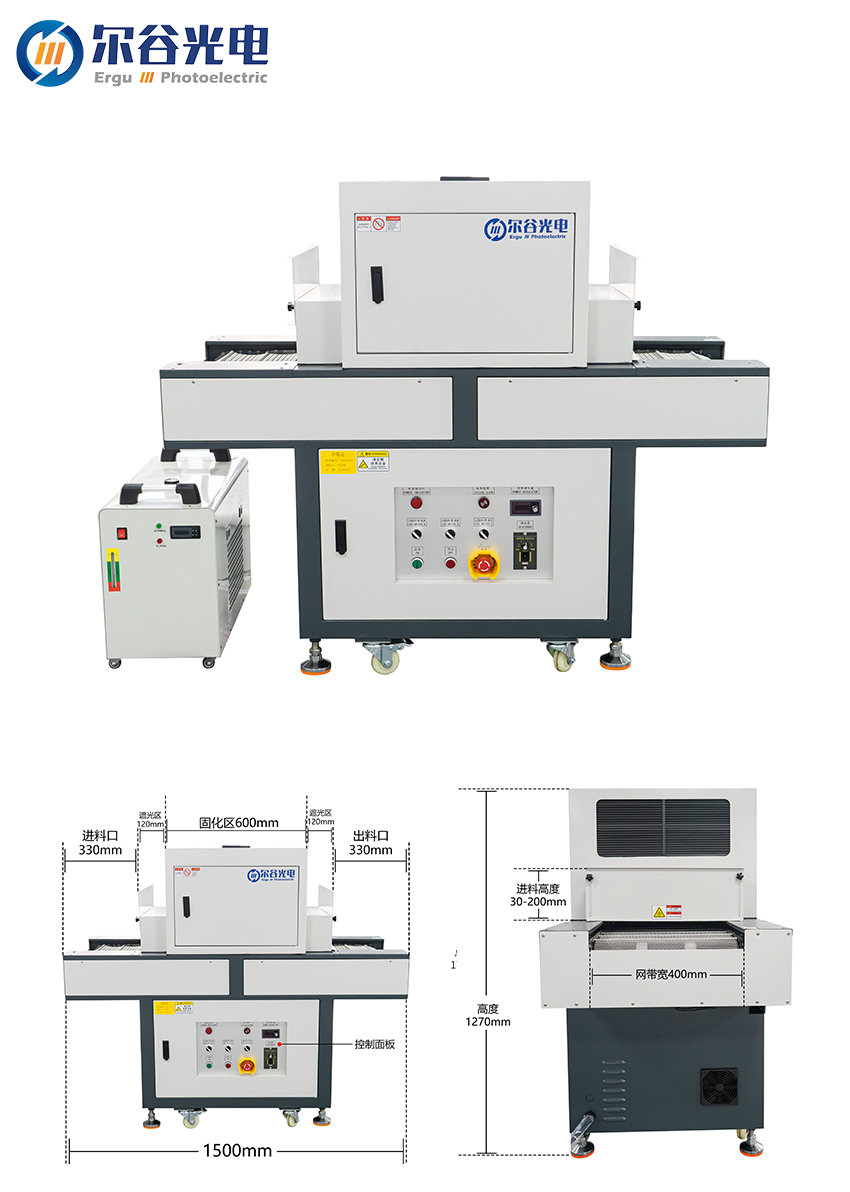

| External dimensions of curing machine |
Length 1500mm x Width 655mm x Height 1270mm |
| Dimensions of water-cooled machine |
Length 585mm x Width 295mm x Height 500mm |
| Whole machine power |
2.6KW |
| Band |
365nm |
| Longevity weight |
＞20000H |
| Mesh belt width |
400mm |
| Mesh belt material |
4-point double pitch chain stainless steel mesh belt |
| Bearing capacity |
35KG |
| Conveyor speed |
0.5~8m/min |
| Illumination area |
Top light fixture: around 300x100mm Light fixture: 200x50mm |
| Power regulation |
Rotate the power adjustment knob to adjust the LED power |
| Input power supply |
220V 50-60Hz |
