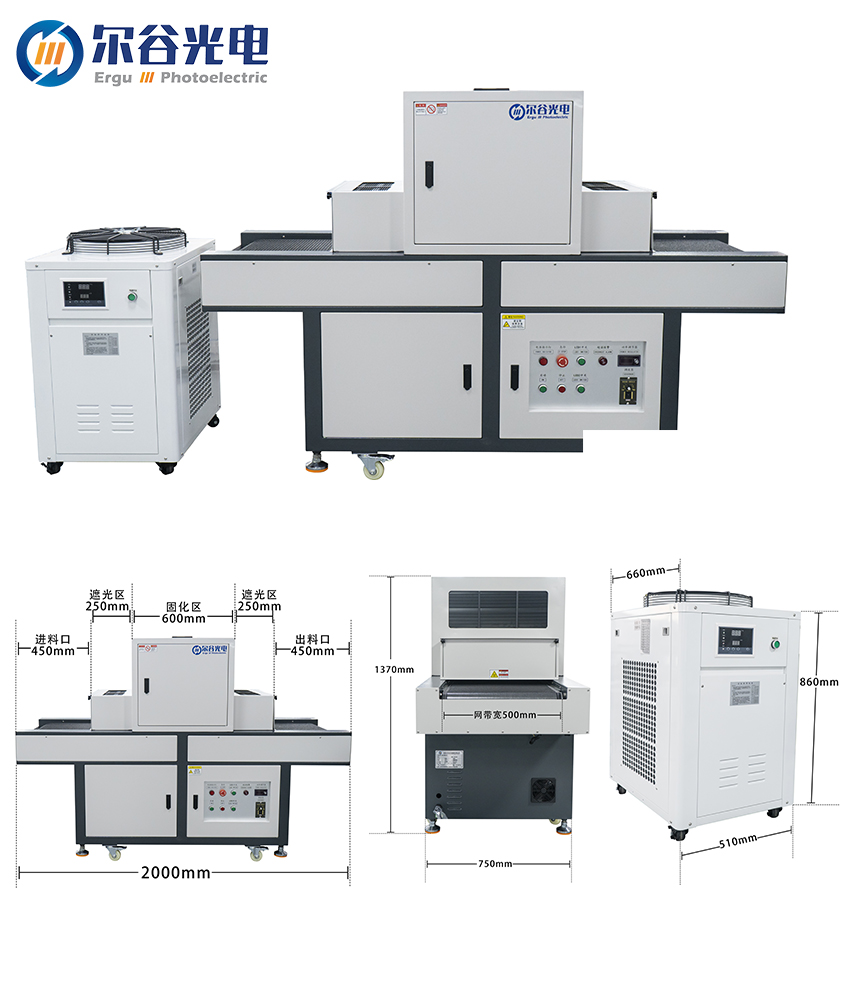

![]() 【Origin Pic】 |
|

| Product Name | UV curing machine |
| Product model | LY500-2S54035L39 |
| Product size | L2000mm×W750mm×H1370mm |
| Water cooling machine size | L660mm×W510mm×H860mm |
| Inlet height | 30-200mm adjustable |
| Transmission speed | 0.3-8m/min manually adjustable |
| LED luminous area | 540mm x35mm |
| Lamp wavelength | 395nm |
| LED light source heat dissipation | Water cooling |
| Operating voltage of the whole machine | AC380V 50Hz |
| Whole machine power | 6KW |
