 【Origin Pic】 |
|
|

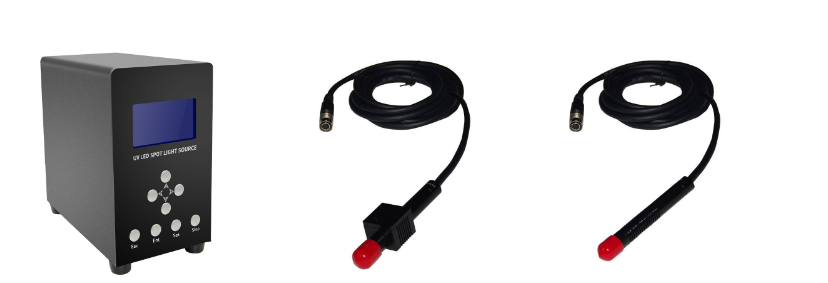

| Product Name: | UV point light source | |||
| Product model: | JZ04-365-1 | JZ04-365-2 | JZ04-365-3 | JZ04-365-4 |
| Whole machine power: | 25W | 30W | 35W | 40W |
| Single lamp power: | 3W | |||
| Peak: | 365nm | |||
| Spot diameter: | 3/4/6/8/10/12optional | |||

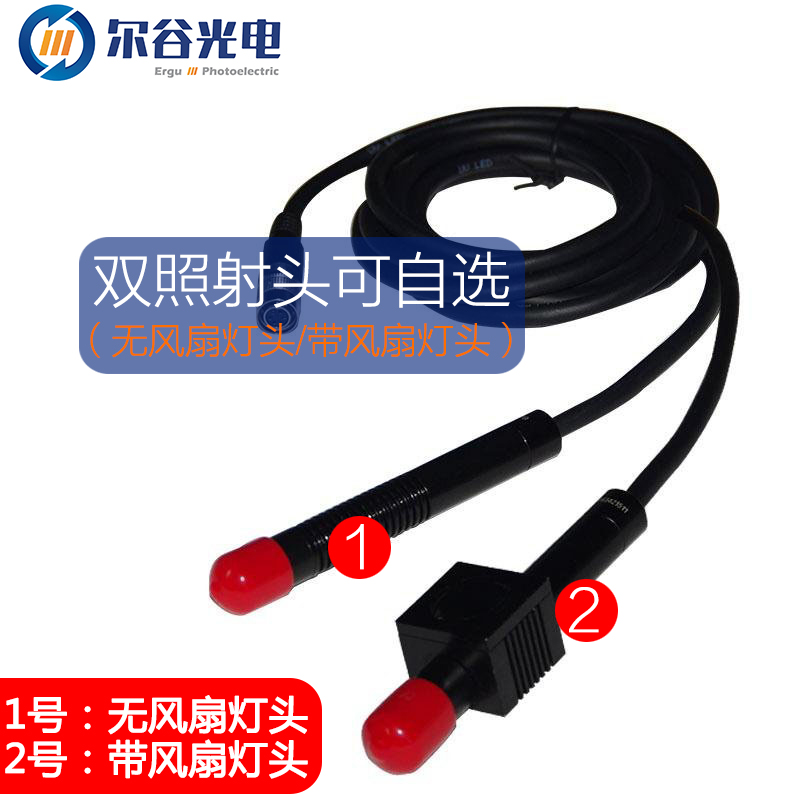

| Lamp head style: | With fan/without fan | |||
| Illumination mode | Automatic mode, manual mode, pulse mode, step mode | |||
| Parameter settings: | Button based settings/key switch | |||
| Exposure control | Manual or timed control, capable of achieving stepwise irradiation/natural cooling or forced cooling | |||
| Light source lifespan: | 20000hour | |||
| Heat dissipation method: | Fan natural heat dissipation | |||
| Cable length: | 2M/5M/10MOptional (default 2M) | |||
| Power regulation: | 1-100%Adjustable power | |||
| Function: | I/O signals, COM communication | |||
| Input power supply: | AC 220V 50/60Hz | |||
| Inventory status: | Regular inventory | |||
| Equipment usage: | Medical, electronic, LCD PCB、 UV glue curing for packaging and other purposes | |||
1、 Control unit
(1) External dimensions: L145mm*W85mm*H110mm.
(2) Shell material: metal, which effectively protects the internal circuit from external damage and shields it from the influence of external electromagnetic fields
(3) Appearance color: Deep ultraviolet color

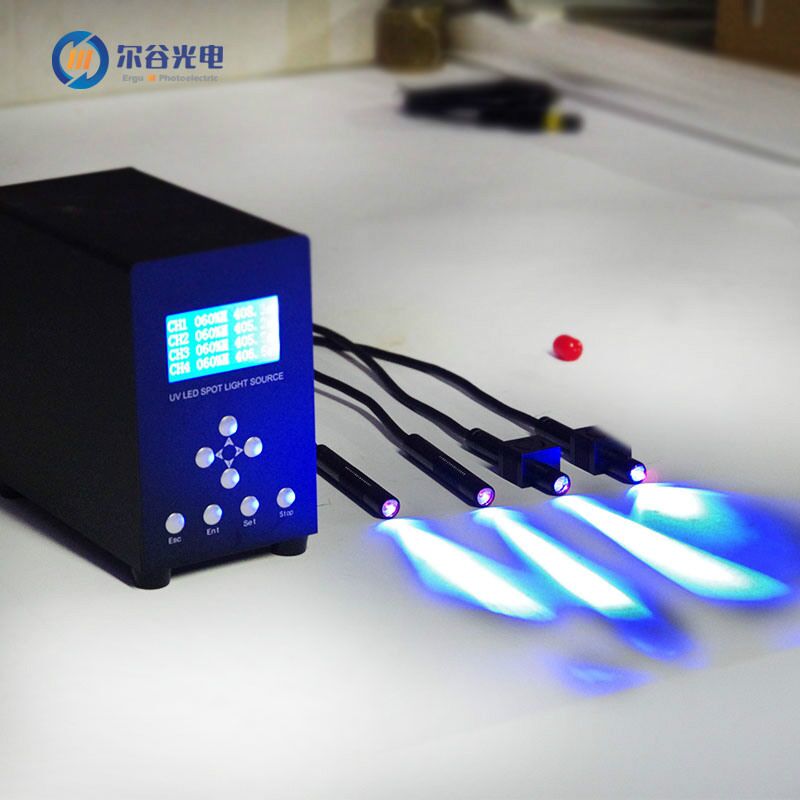

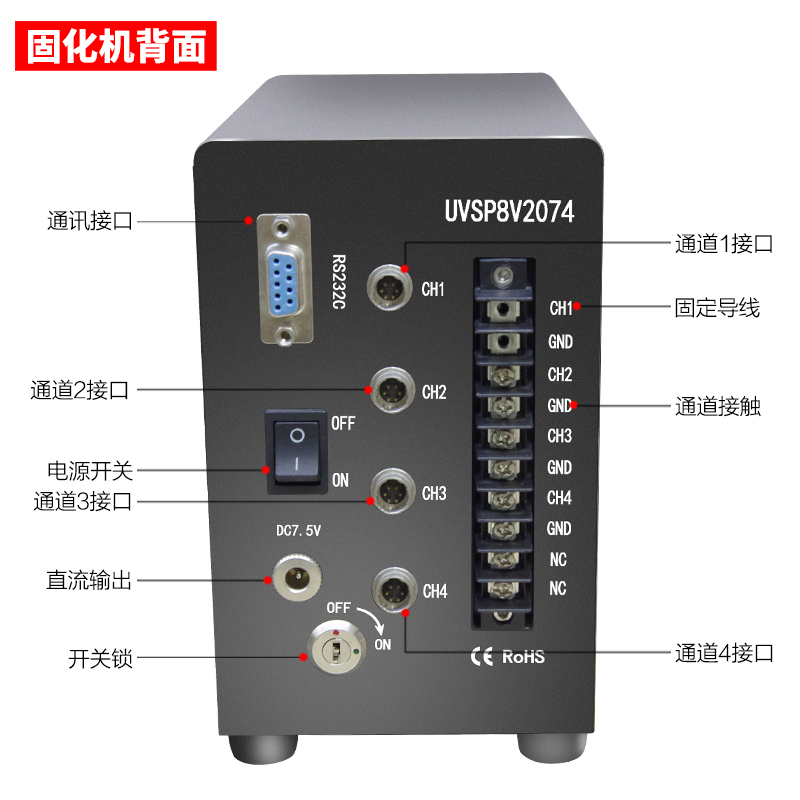

(4) Output terminal: Four irradiation channel terminals, capable of supporting four irradiation heads separately at the same time
(5) Input terminal: Four way foot switch input terminal, used to simultaneously control the corresponding irradiation channel. Power input DC12V 4A
(6) COM terminal: Connect to the RS232 serial port on the PC to control the device
(7) Open & nbsp; & nbsp; Off: Power switch, the main switch used to supply power to the entire system of the device: key switch. When in the locked state, the device is prohibited from working normally

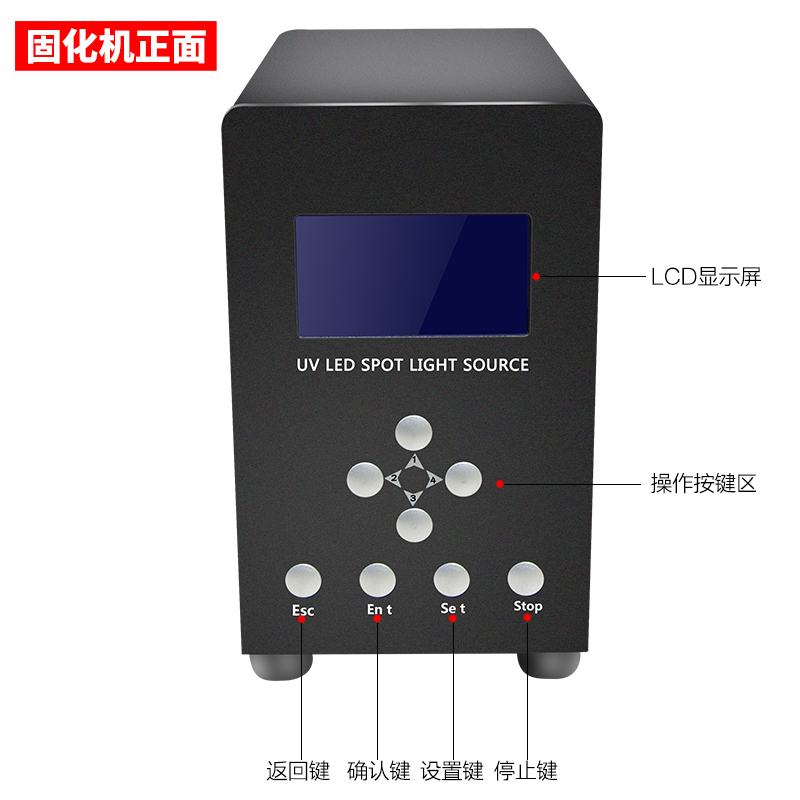

(8) Display window: LCD color LCD display, which can be controlled through human-machine interface through screen prompts
(9) Control modes: automatic control (software control), foot pedal control, manual control.
