| Function configuration | Technical parameters |
| Product Name | UVLED curing machine |
| Product model | F10-200100L36-001 |

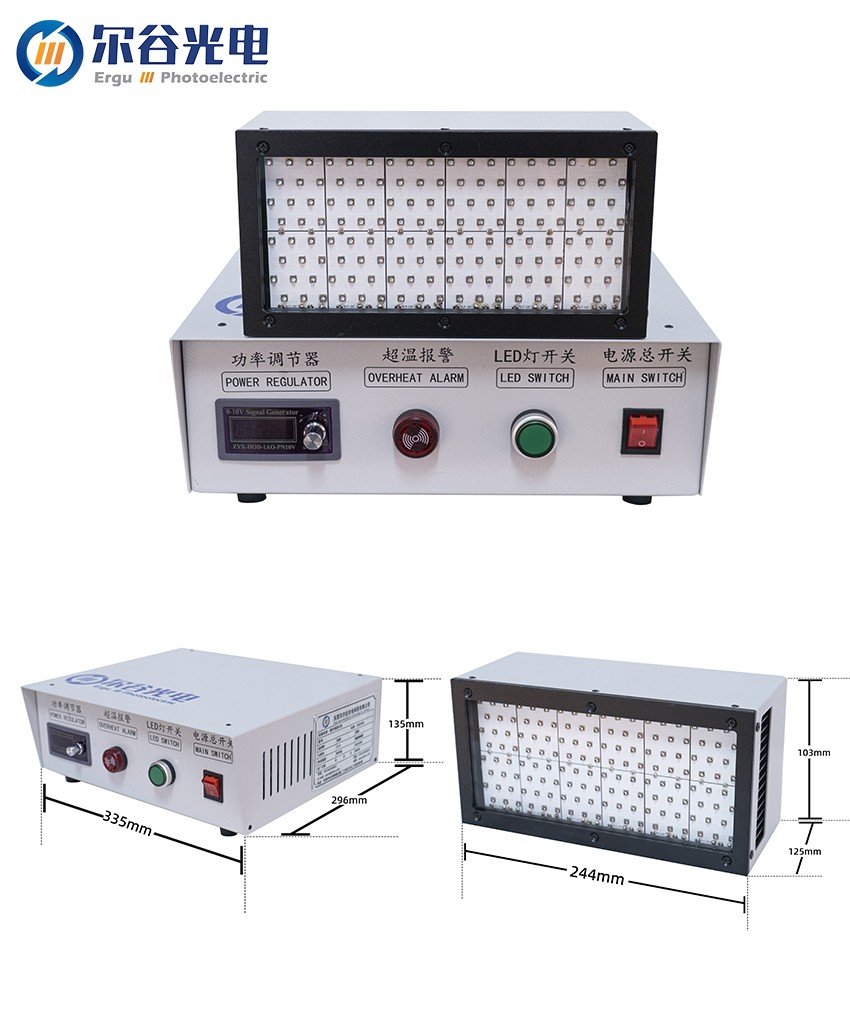

| Lamp head size | L244mmxW125mmxH103mm (excluding handle) |
| Controller size | L335mmxW296mmxH135mm |
| Working environment temperature | -20℃~40℃ |
| Number of LED beads | 144 pieces |
| Illumination area | 100mm×200mm |
| Lamp wavelength | 365nm |
| Exhaust heat dissipation | Air cooling |
| Operating voltage of the whole machine | AC220V |
| Whole machine power | 320W per unit |
