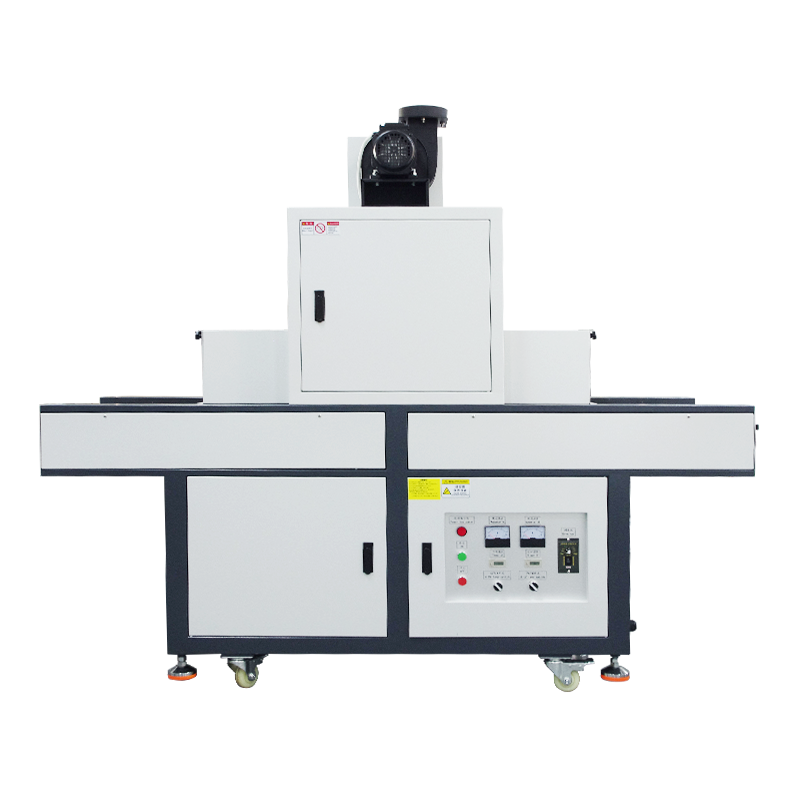

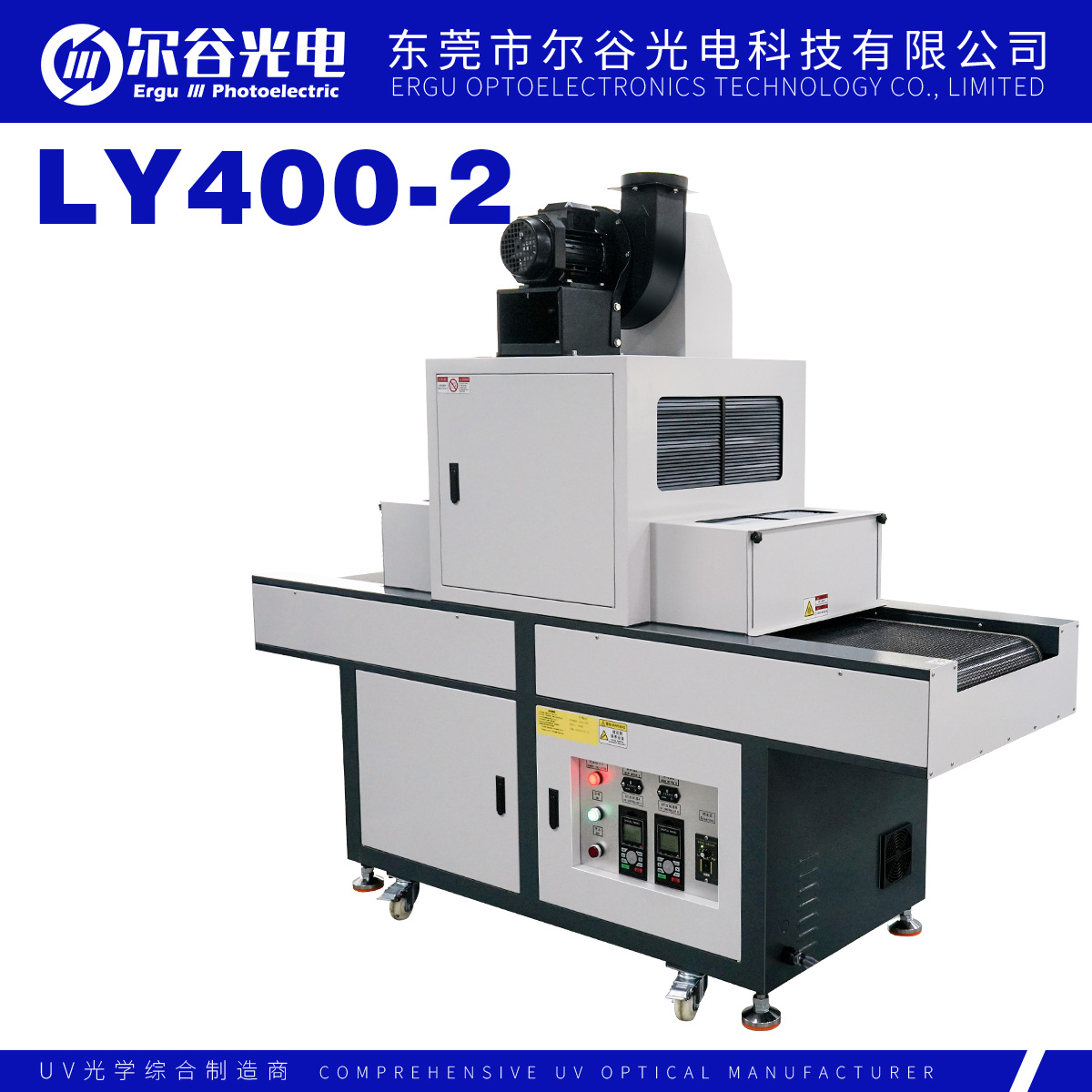

LY400-2 UV curing machine
| Product model: |
LY400-2ZL3K |
LY400-2BY3K |
LY400-2BY6K |
LY400-2DZ6K |
| Whole machine power: |
6.8KW |
6.8KW |
12.5KW |
12.5KW |
| Single lamp power: |
3KW |
3KW |
5.6KW |
5.6KW |
| Number of Lamp Tubes: |
2 pieces |
| Lamp type: |
Mercury lamp/Gallium lamp/Halogen lamp (optional) |
| Lightbox type: |
aluminum mirror |
| Illumination method: |
Top down illumination |
| Illumination distance: |
30-200（mm）adjustable |
| External dimensions: |
2000*650*1700(mm) |
| Mesh belt width: |
400mm |
| Maximum Feed: |
450mm |
| Mesh belt material: |
Teflon mesh belt |
| Conveyor speed: |
0.5-7M/min(meters per minute) |
| UV system type:
| Ballast+trigger |
Transformer+capacitor |
Intelligent variable frequency power supply |
| Power regulation:
| All optical |
Full/half light power adjustable |
20%~100% power adjustable |
| Input power supply: |
AC 380V 50/60Hz |
| Does it support customization |
Support customization |
| Inventory status: |
Regular inventory |
| Equipment usage: |
Metal, wood, plastic, electroplating, spray painting, printing and other light oils, inks, adhesives curing |
