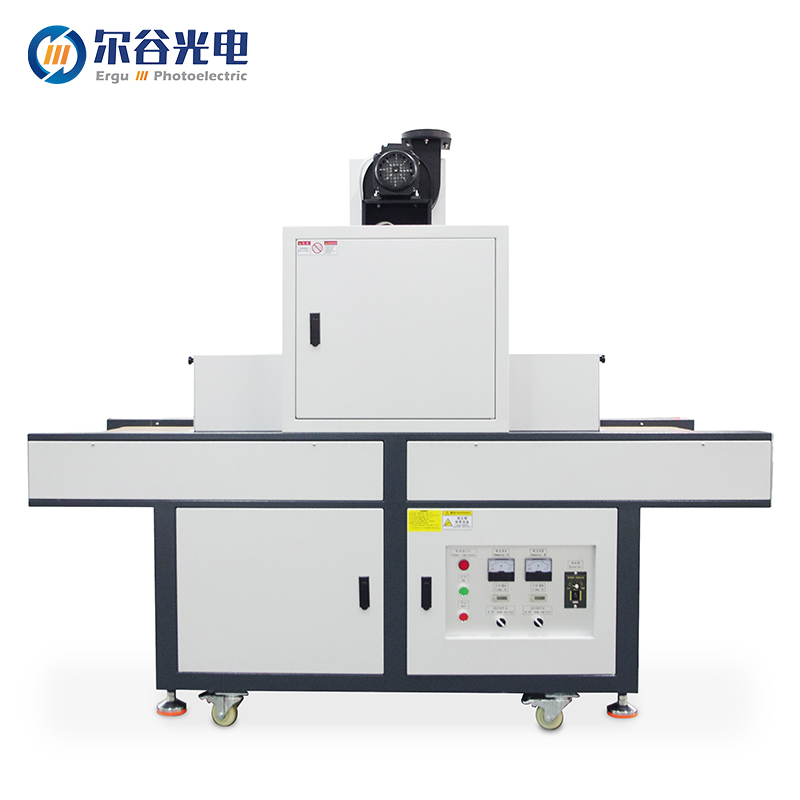

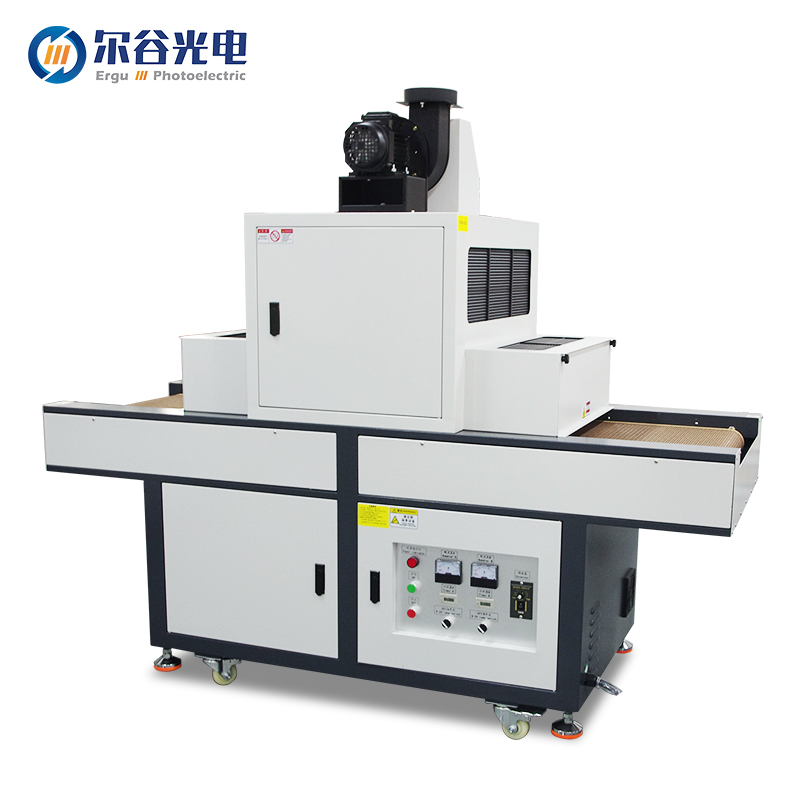

| Product model: | LY700-2BY6K | LY700-2BY8K | LY700-2DZ6K | LY700-2DZ8K | |
| Whole machine power: | 12.5KW | 18KW | 12.5KW | 18KW | |
| Single lamp power: | 5.6KW | 8KW | 5.6KW | 8KW | |
| Number of Lamp Tubes: | 2 pieces | ||||
| Lamp type: | Mercury lamp/Gallium lamp/Halogen lamp (optional) | ||||
| Lightbox type: | aluminum mirror | ||||
| Illumination method: | Top down illumination | ||||
| Illumination distance: | 30-200（mm）adjustable | ||||
| External dimensions: | 2000*950*1700(mm) | ||||
| Mesh belt width: | 700mm | ||||
| Maximum Feed: | 750mm | ||||
| Mesh belt material: | Teflon mesh belt | ||||
| Conveyor speed: | 0.5-8M/min(meters per minute) | ||||
| UV system type: | Traditional transformer+capacitor | Intelligent variable frequency power supply | |||
| Power regulation: | All optical/half optical power adjustable | 20%~100% power adjustable | |||
| Input power supply: | AC 380V 50/60Hz | ||||
| Does it support customization | Support customization | ||||
| Inventory status: | deny | ||||
| Equipment usage: | Metal, wood, plastic, electroplating, spray painting, printing and other light oils, inks, adhesives curing | ||||
