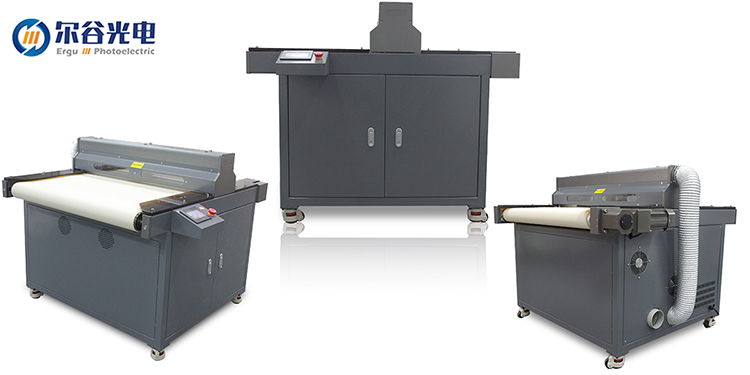

Flat corona treatment machine

Applicable industries: Suitable for corona treatment of flat products such as ink printing, coating, blown film, material bonding, and pasting, such as calendars, picture books, adhesive tapes, etc. The effective processing width is 800mm, the thickness is within 2mm, and the corona discharge speed is 1-17mm/min

This machine supports customization: width range 600mm~800mm

Advantages: It effectively handles a wide width, has fast corona discharge speed, and can be freely adjusted in speed

Disadvantage: Cannot handle conductive products

​

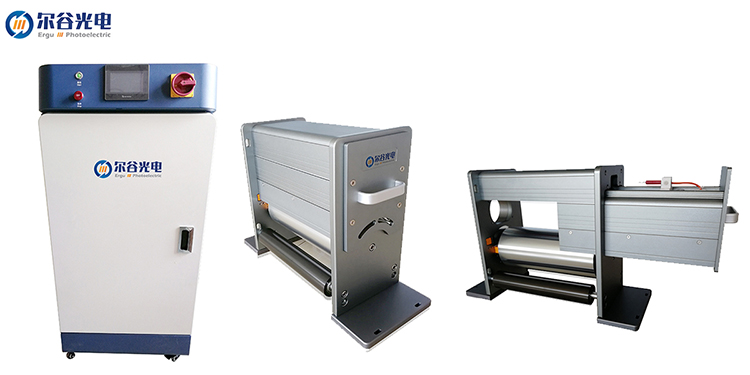

Split type electric motion sickness machine

Applicable industries: Suitable for bonding, coating, and printing various flexible materials, both conductive and non-conductive materials can be corona treated, such as aluminum foil, aluminum plated film, PET, LDPE, PP copolymer, PP homopolymer, and other different plastic films. The effective processing width is 450mm, and the corona discharge speed is 1-6 meters/minute. It can be used in conjunction with slitting machines and printing machines

This machine supports customization: width range 320mm~1600mm

Advantages: Simple and fast maintenance, corona conductive material, high cost-effectiveness, and free speed regulation

Disadvantages: The corona machine does not have casters and needs to be fixed to the ground with screws, making it difficult to move

​

Coil corona treatment machine

Applicable industries: Suitable for various flexible materials such as bonding, coating, printing, etc. Both conductive and non-conductive materials can be treated with corona discharge. For example, different plastic films such as aluminum foil, aluminum plated film, PET, LDPE, PP copolymer, and PP homopolymer. The effective processing width is large, up to 1000mm; The rewinding speed is fast, reaching 8-200m/min. This machine has rewinding function

This machine supports customization: width range 320mm~1600mm

Advantages: Suitable for large-scale industrial corona treatment and can be freely adjusted in speed

Disadvantages: The machine has a large body size, no casters, and is difficult to move

​
